Weston-Super-Mare Grand Pier

Case Study Overview

Red7Marine has gained extensive experience in technically challenging projects through its previous work. This has made it one of the leading marine construction companies in the construction and repair of maritime structures such as Weston-super-Mare Grand Pier.

The Red7Marine team was chosen to provide specialist marine plant and personnel to aid the redevelopment of the Weston-super-Mare Grand Pier after it was destroyed in a fire in 2008. Red7Marine supplied the Haven Seajack 4 as a crane platform for the main contractor to rebuild the pavilion.

At a glance

  • Location: Weston-super-Mare Grand Pier, North Somerset
  • Plant used: Haven Seajack 4 jack up barge
  • What we did: Red7Marine was involved in the operations to repair the Weston-Super-Mare Grand Pier after it was destroyed by a fire in 2008.

The Challenge

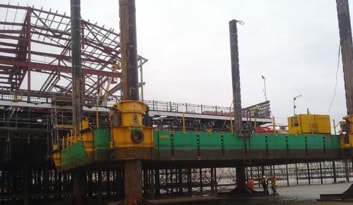

After a local site assessment identified that the ground conditions were particularly challenging, 4m square bespoke spud cans were designed to support the barge on the weak ground. The spud cans were designed and fabricated in-house and fitted on the jacking legs to spread the ground bearing pressures to acceptable limits. The restricted options for loading a crane onto the jack up barge locally required a timber track roadway and ramp to be constructed on the beach so the mobile crane could be driven onto the deck of the Haven Seajack 4.
Weston Super Mare Challenge

The Solution

Jack up barges are ideally suited to operating around piers and elevated marine structures allowing the deck height to be adjusted as required and providing a stable and level platform. The Haven Seajack 4 allowed crane operations to take place regardless of the sea state and provided better visibility for the crane operator mitigating the risks associated with ‘blind’ lifts.

Nick Offord, Managing Director at Red7Marine comments: “As previous projects have shown, Red7Marine has the ability and the expertise to cope with challenging marine and site environments and the re-development of leisure-based marine structures. This project was perfectly suited for Red7Marine’s specialist equipment and it was an honour to provide a team and plant for such a famous and historic pier to see it once again being used as a popular tourist attraction.”

Weston Super Mare Solution

Reputation

Red7Marine is one of the leading contractors for the re-development and build construction of marine structures.

Marine plant

All Red7Marine equipment and operations are IJUBOA accredited, giving clients assurance that the team and fleet operate to the highest standards.

Skilled team

The jack up barges used within this project were all operated by highly skilled Barge Masters, offering peace of mind at each and every stage of the operations and ensuring the project was managed effectively.

THE MARINE PARTNER OF CHOICE

SEE RELATED CASE STUDIES

Westminster

Westminster Pier Extension

The Westminster Pier Extension allows more frequent River Bus services between Woolwich and North Greenwich to Westminster. The extension is a key part of the River Action Plan to improve TfL’s piers and increase capacity for passengers before 2020. Red7Marine designed and built a custom pile gate for the project. The barge was reviewed to support a 180t crawler crane for piling operations and was then further reviewed with an additional RH28 drill rig on board.

Read more →

Brighton

Brighton Marina
Phase 2

In order to accommodate a new luxury apartment block in Brighton, part of the marina needed to be reclaimed using sheet piled cofferdams. This would enable the water to be kept out and foundations to be built for the stunning seafront properties. Red7Marine supported the installation of a sheet pile twin wall cofferdam.

Read more →

Oldbury

Oldbury

Red7Marine installed replacement Active Effluent Discharge Lines at Oldbury power station as part of the on-going care and maintenance works. Red7Marine’s previous project experience on similar projects consisting of works on subsea pipeline and outfalls at Bradwell and Sizewell nuclear power stations, positioned the company as the ideal marine partner for client, Magnox.

Read more →

Emirates

Emirates Cable Car

The Emirates cable car was installed to provide a pedestrian link across the River Thames between the Royal Docks and the Greenwich peninsula. Red7Marine worked with Bachy Soletanche in a joint venture to install the foundations for the one-kilometre long cable car using marine rotary bored piling.

Read more →

Battersea

Battersea River Pier

Red7Marine secured a contract at Battersea in December 2016 to install new tubular driven steel mooring piles for the Battersea Power Station river bus pontoon installation which is planned to be operational in Autumn 2017. Transport for London (TFL) decided to extend the river bus service after the number of housing developments at Battersea began to increase.

Read more →

Middleton

Middleton Sands Navigation Marker

This fast turn-around marine construction project involved the installation of a new tubular steel navigation marker pile at Middleton Sands, Barrow-in-Furness in 2017. The navigation marker was required to identify the sub surface obstructions and enable other vessels in the area to operate safely.

Read more →

Liverpool 2

Liverpool 2 Deep Water Port Extension

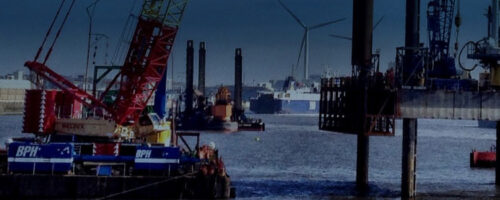

Red7Marine was the marine partner of choice for BAM Nuttall when they constructed a piled combi-wall as part of the Liverpool 2 Dock Expansion that began in 2014. The construction of the container terminal was supported by four of Red7Marine’s jack up barges; the Haven Seariser 1, Haven Seariser 2 and the Haven Seariser 3 and the Haven Seajack as it carried out rock socket piling works.
